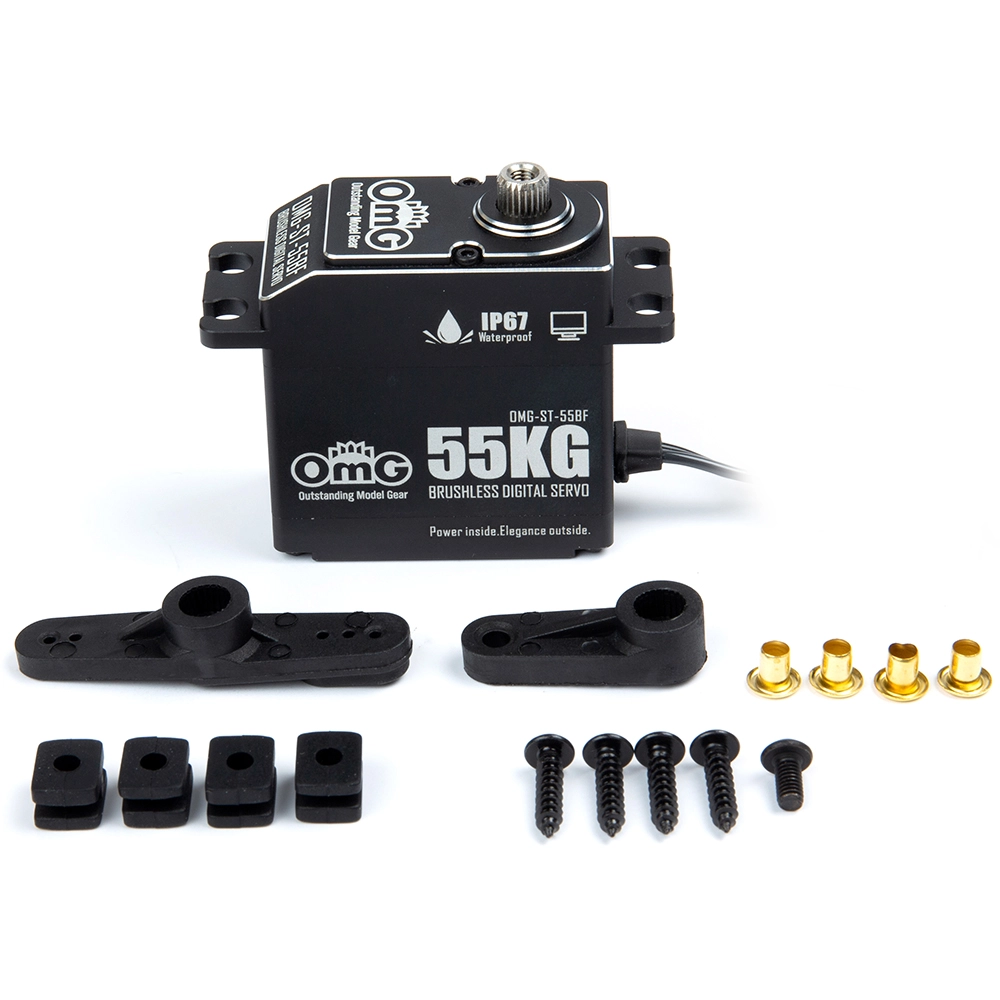

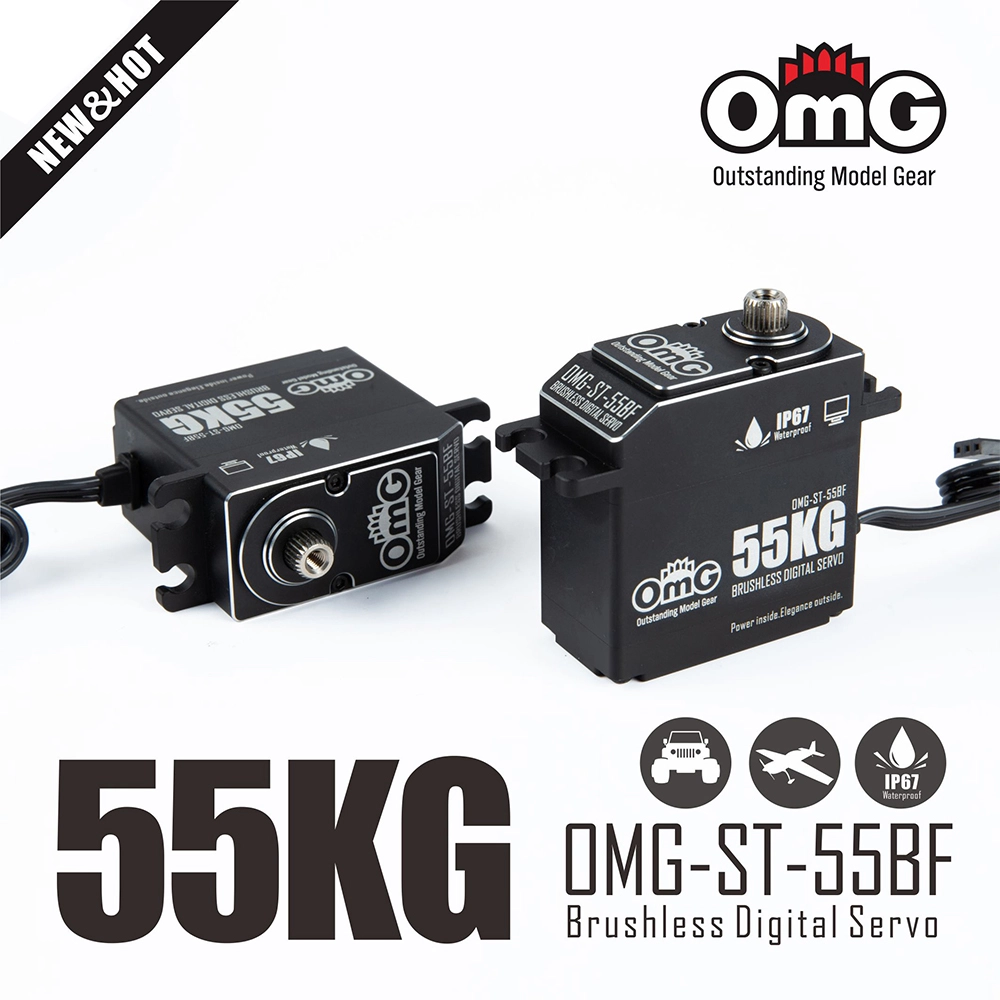

OMG-ST-55BF Servo

Special desgin for 1:8 RC Vehicle and above 60CC large plane. Standard profile brushless motor high voltage servo, full body in CNC precise engraving, matte cover, steel gear,add PIN 2.0mm at Riveting point ,better in collision avoidance , waterproof IP67, Programmable. Competition Class Servo.

Item No. OMG-ST-55BF

Operating speed:

7.4V-0.105sec/60°

8.4V-0.095sec/60°

Stall torque:

7.4V-52kgf.cm

8.4V-56.5kgf.cm

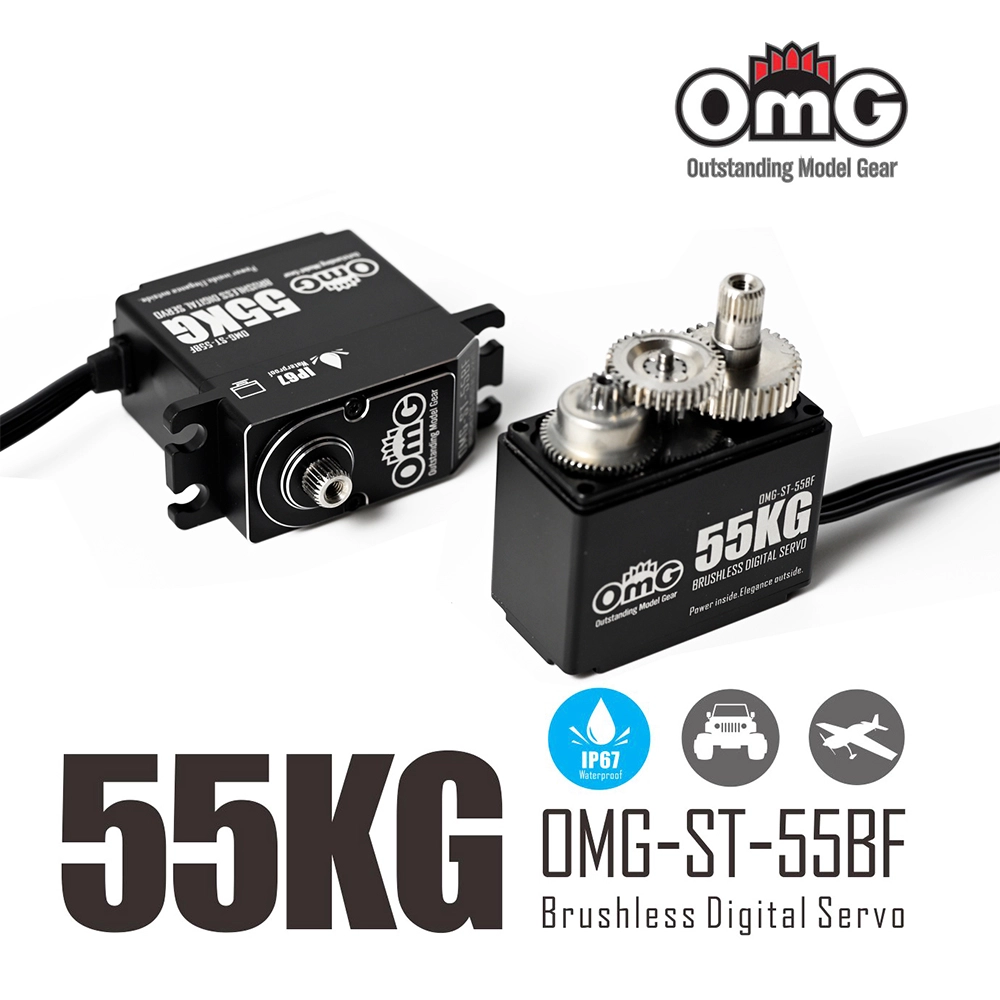

Gear Material:Stainless steel

Horn gear spline:25T Φ5.9

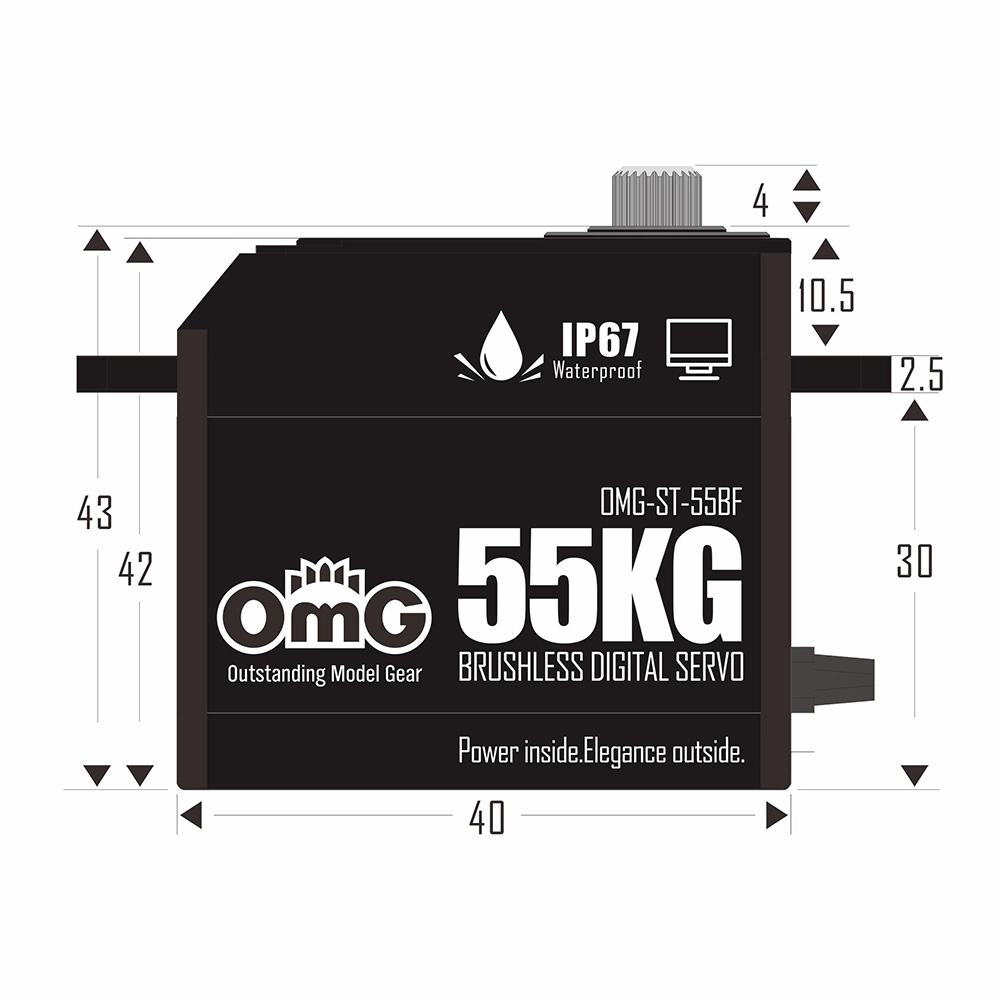

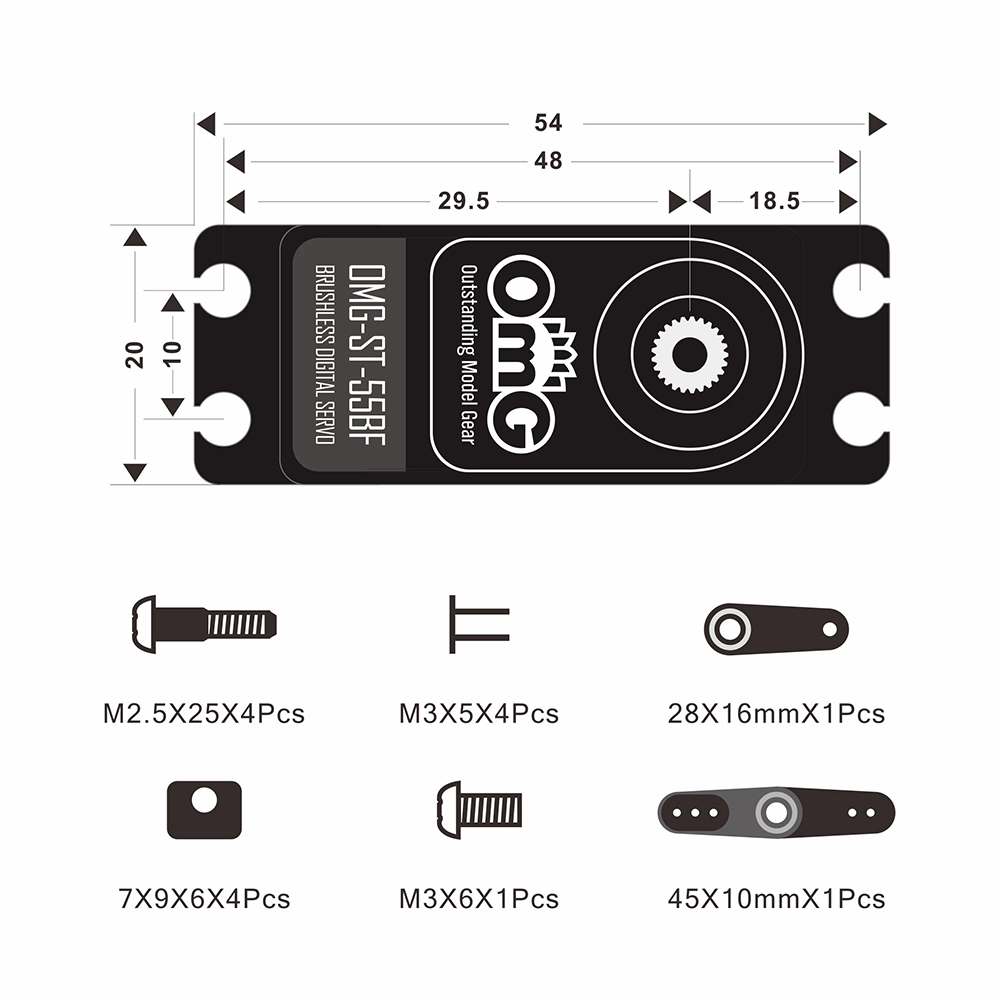

Size:40x20x41.5mm(1.57x0.79x1.63in)

Case Material:Full Metal

Weight:88g

Bearing:3BB

Motor type:Brushless

Operating Temperature:-15℃~+70℃

Operating travel :≈180±10°

Frequency:1520uS

Refresh Rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:300mm

Waterproof level:IP67

Programmable:Yes
