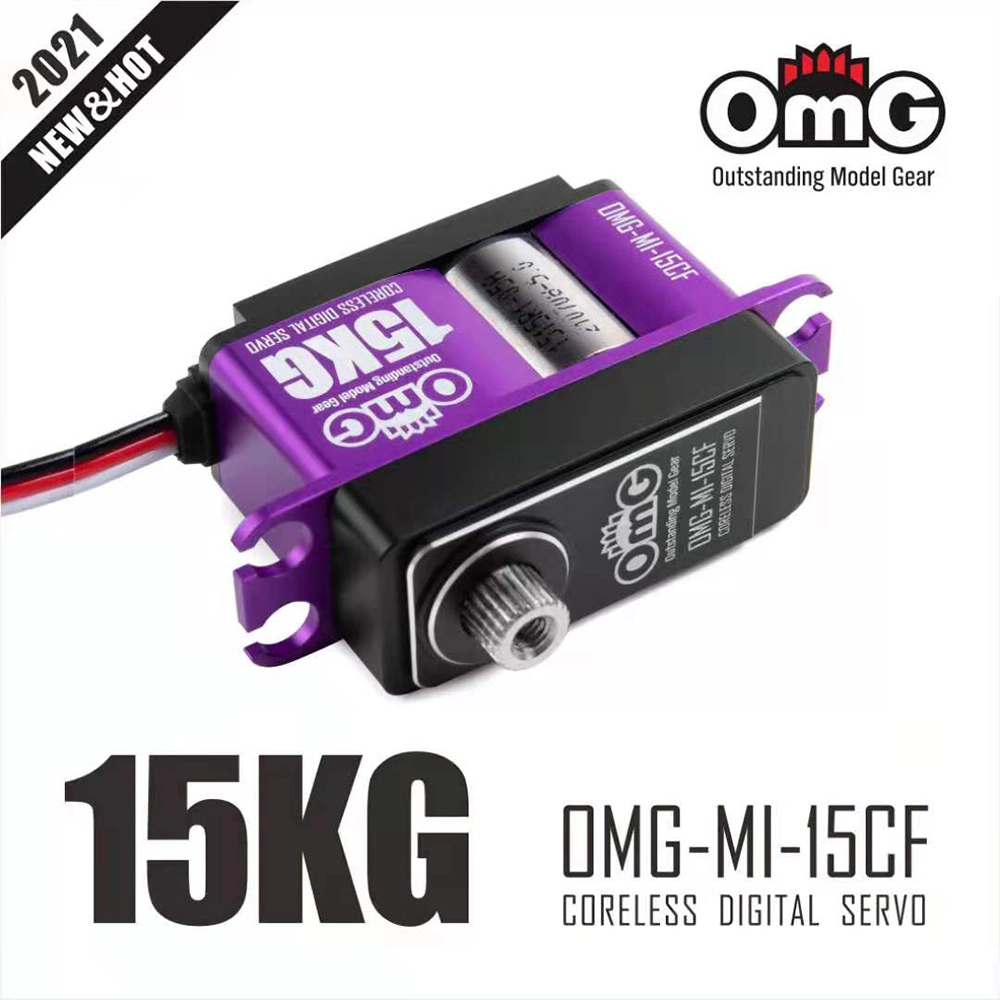

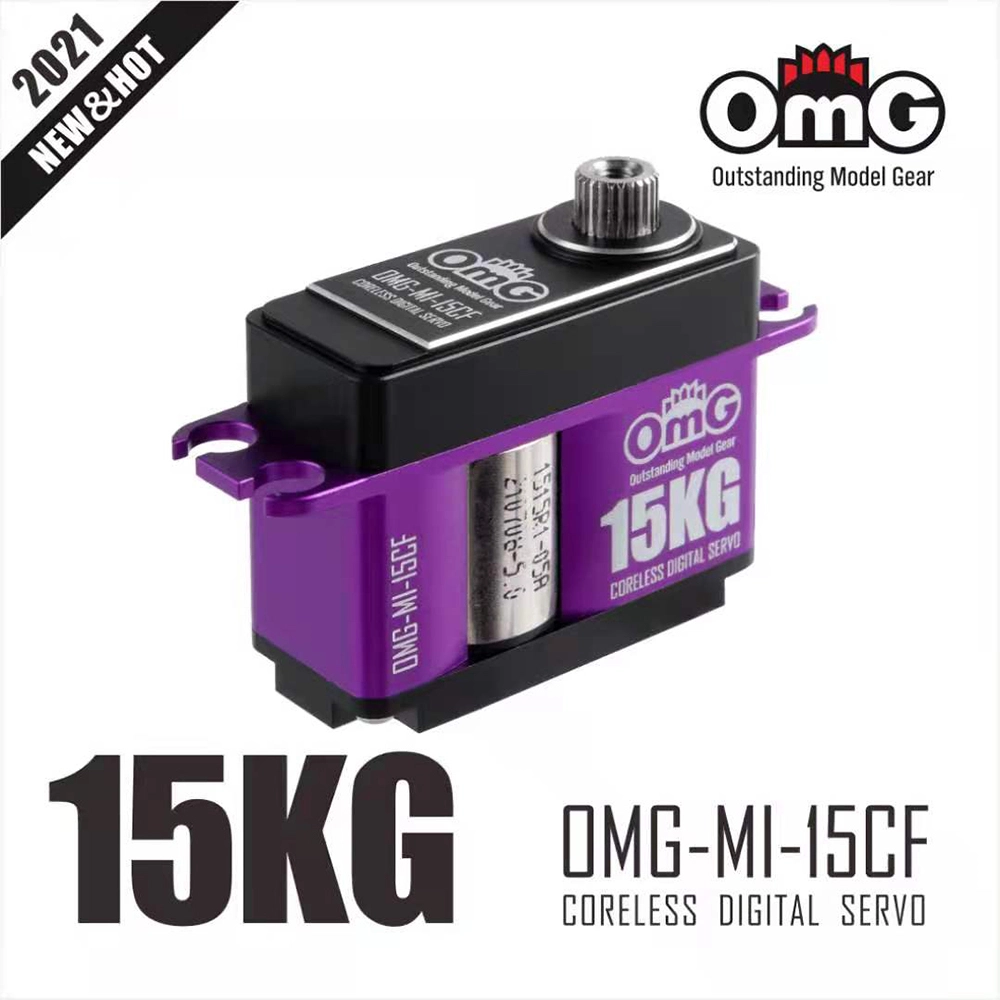

OMG-MI-15CF Servo

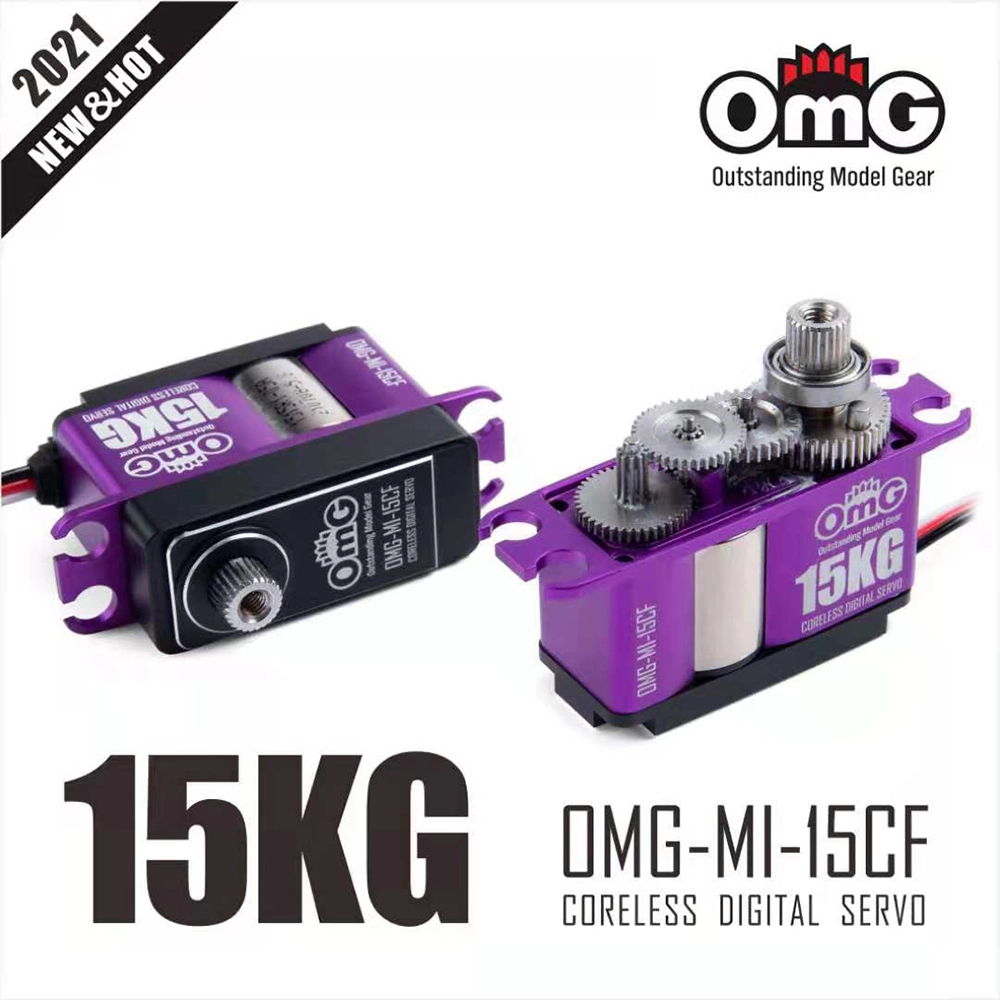

Fit for turbine aircraft,large scale glider & 1:12th scale racer.Full metal coreless high voltage servo. Steel gear, middle scale

Item No. OMG-MI-15CF

Operating voltage:4.8-7.4V

Operating speed:

6.0V-0.11sec/60°

7.4V-0.09sec/60°

Stall torque:

6.0V-14.5kgf.cm(201oz-in)

7.4V-15.8kgf.cm(219oz-in)

Gear Material:Alum.Titanium

Horn gear spline:25T Φ5.9

Size:36x15x29mm(1.42x0.59x1.14in)

Case Material:Full metal

Weight:41g

Bearing:2BB

Motor type:Coreless

Operating Temperature:-15℃~+70℃

Operating travel :≈180±10°

Neutral position :1520μsec

Frequency:1520uS

Refresh Rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:180mm

Waterproof level:Dust & Water Splash Resistacne

Programmable:No
