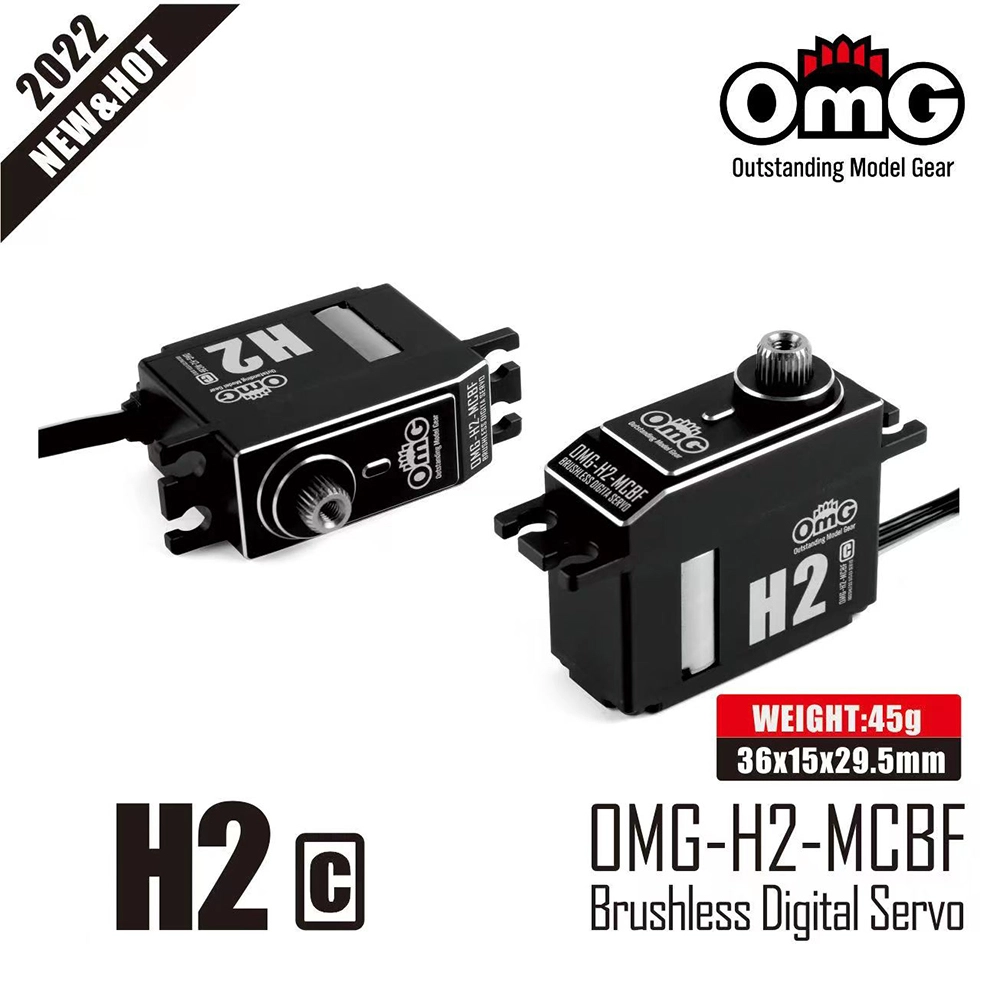

OMG-H2-MCBF Servo

Item No. OMG-H2-MCBF

Operating voltage:4.8-8.4V

Operating speed:

6.0V-0.085sec/60°

7.4V-0.080sec/60°

Stall torque:

6.0V-13kgf.cm (181oz-in)

7.4V-14kgf.cm (194oz-in)

Gear material:Stainless steel

Horn gear spline:25T Φ5.9

Size:36x15x29.5mm(1.42x0.59x1.16in)

Case material:Full Metal

Weight:45g

Bearing:2BB

Motor type:Brushless

Operating temperature:-15℃~+70℃

Operating travel :≈180±10°

Neutral position :1520μsec

Frequency:1520uS

Refresh rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:300mm

Waterproof level:Dust & Water Splash Resistacne
