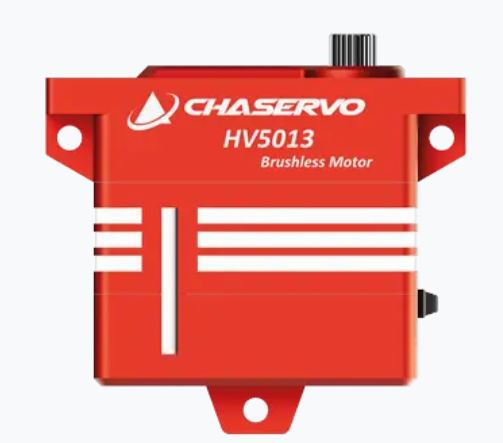

CHASERVO HV5013
Multi Tool.
The HV5013 is the ultimate servo for anyone looking for impressive power and performance. With a holding force of an incredible 60 kg-cm at 8.4V, this servo sets new standards in terms of strength. It is one of the most powerful servos on the market and can withstand extreme loads with ease
With a stalling torque of up to 51 kg-cm, the HV5013 proves its exceptional robustness. No matter how heavy the load, this servo is not easily fazed. It is the perfect choice for demanding applications where a high load capacity is required.
But the HV5013 doesn't just impress with its impressive power. It also offers precise and reliable performance and the usual high-quality Chaservo workmanship.
Holding and Stalling Torque
Impressively fast
Idle speed of the HV5013 series in comparison.
Sophisticated design
The mounting brackets allow horizontal and vertical installation, which enables flexible use of the servo. The 4-pole brushless motor works perfectly with the metal gearbox and delivers maximum precision.
For highest demands
From modeling to robotics and beyond, the Chaservo HV5013 is designed to meet the most rigorous requirements. It delivers unmatched reliability, power, and precision.
Specifications
| Servo Data | |
|---|---|
| Brand | Chaservo |
| Dimensions | 1.59 x 0.67 x 1.57 in (40.5 x 17 x 40 mm) |
| Weight | 68 g |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 6.0 – 8.4V |
| Output Shaft Spline | 25T |
| Position sensor | Potentiometer |
| Motor | 4 Pole Brushless |
| Working Frequency | 1520µs/333Hz |
| Pulse Range | 900µs-2100µs |
| Programmable | Ja |
| Material | |
|---|---|
| Case Material | Aluminium |
| Gear Set Material | Metallgetriebe |
| Holding Torque | |
|---|---|
| Holding Torque @ 6.0V | 555.49 oz·in (40.0 kg·cm) |
| Holding Torque @ 7.4V | 694.36 oz·in (50.0 kg·cm) |
| Holding Torque @ 8.4V | 833.24 oz·in (60.0 kg·cm) |
| Output Torque | |
|---|---|
| Output Torque @ 6.0V | 472.17 oz·in (34.0 kg·cm) |
| Output Torque @ 7.4V | 42.5 kg·cm |
| Output Torque @ 8.4V | 708.26 oz·in (51.0 kg·cm) |
| No-load Speed | |
|---|---|
| No-load Speed @ 6.0V | 0.16sec/60° |
| No-load Speed @ 7.4V | 0.13sec/60° |
| No-load Speed @ 8.4V | 0.11sec/60° |
| max. Current | |
|---|---|
| max. Current @ 6.0V | 8.5A |
| max. Current @ 7.4V | 10.3A |
| max. Current @ 8.4V | 11.8A |
