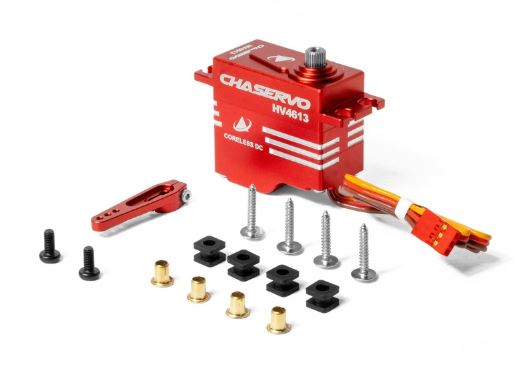

CHASERVO HV4613
Ideal standard servo of the upper class
Designed for the highest demands – the CHASERVO HV4613 combines precision, power and reliability in one servo of Top class. Perfect for the demanding model manufacturer, which isn't Compromises to make compromises.
With one impressive torque gives the HV4613 excellent performance with every application – be it in aircraft model making, RC-car or even in Robotics section. Compatible with a wide voltage range from 6V to 8.4V
The robust construction with durable metal gears, which are also included maintain high load their form and function. Ideal for the permanent use. With the finest tuning and a high holding torque the servo for precise movements and fine resolution.
The use of high-quality aluminium housings provides additional stability and heat dissipation.
Ideal for a variety of model making projects – from aircraft to boats to cars
Specifications
Servo Data | |
---|---|
Brand | Chaservo |
Weight | 81g |
Dimensions | 40.5 x 20 x 40 mm |
Rated Voltage | DC 7.4V |
Voltage Range | DC 4.8 – 8.4V |
Output Shaft Spline | 25T, 0.236 in (6 mm) |
Ball Bearing | 2 x Ball Bearing |
Position sensor | Potentiometer |
Motor | Coreless DC |
Working Frequency | 1520µs/333Hz |
Pulse Range | 500 μs – 2500 μs |
Programmable | Ja |
Material | |
---|---|
Case Material | Aluminium |
Gear Set Material | Metallgetriebe |
Holding Torque | |
---|---|
Holding Torque @ 4.8V | 32 kg·cm |
Holding Torque @ 6.0V | 555.49 oz·in (40.0 kg·cm) |
Holding Torque @ 7.4V | 46 kg·cm |
Holding Torque @ 8.4V | 50 kg·cm |
Output Torque | |
---|---|
Output Torque @ 4.8V | 20 kg·cm |
Output Torque @ 6.0V | 25 kg·cm |
Output Torque @ 7.4V | 30 kg·cm |
Output Torque @ 8.4V | 33 kg·cm |
No-load Speed | |
---|---|
No-load Speed @ 4.8V | 0.20sec/60° |
No-load Speed @ 6.0V | 0.16sec/60° |
No-load Speed @ 7.4V | 0.13sec/60° |
No-load Speed @ 8.4V | 0.12sec/60° |
max. Current | |
---|---|
max. Current @ 6.0V | 4.85 A |
max. Current @ 7.4V | 5.62 A |
max. Current @ 8.4V | 6.45 A |
