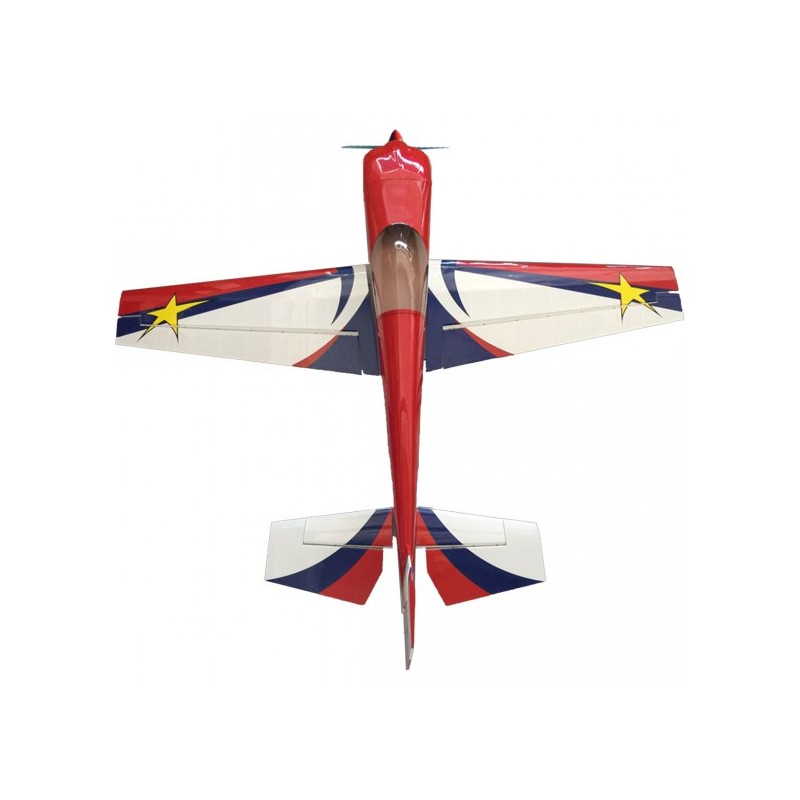

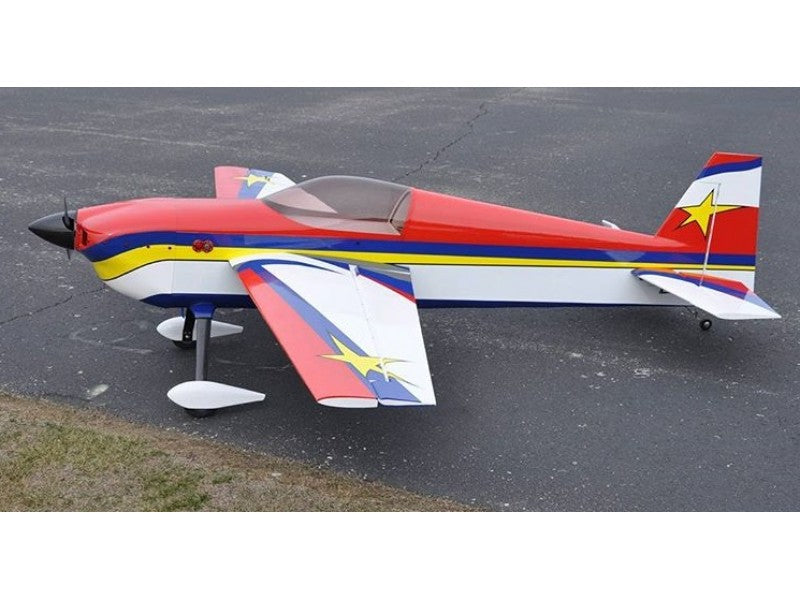

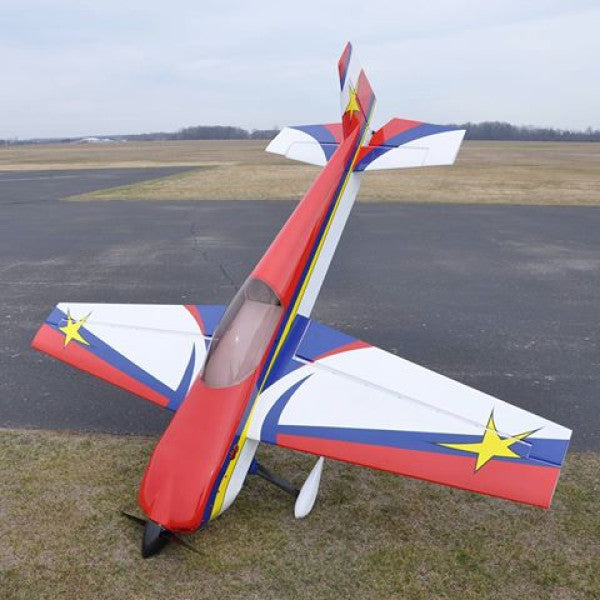

AJ Laser 230Z 93" Patriot

The 411:
  • Wing Span - 93"
  • Length - 88"
  • Height -
  • Wing Area -
  • AUW (dry) - 18lbs to 20lbs
  • Gas Power - 60cc-70cc
  • Electric Power - Hacker Q-80 or equivalent
  • Radio - 6 channel with 5 high torque servos (400 oz./in minimum) & 1 throttle servo for gas power
  • IMAC Legal!
Recommended CG Range and Control Throws
  • The center of gravity (CG) range for the 93" Laser 230z is located 1" in front of the wing tube (+/- 1/2")
  • Aileron Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Elevator Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (50% Exp)
    • High Rates - 45 deg. (60% Exp)
  • Rudder Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - Max Throw (50% Exp)

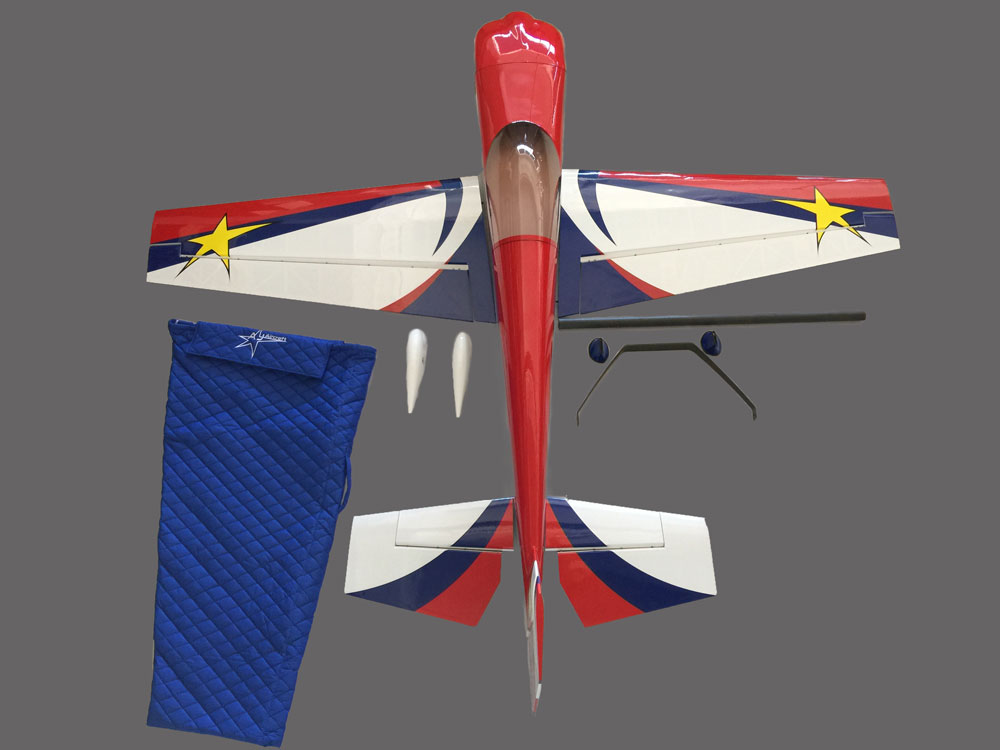

What's in the box:

  • Pre-hinged, glued and sealed ailerons & elevators
  • Carbon fiber main landing gear
  • Carbon fiber main wing tube
  • Removable horizontal stabs & rudder
  • G10 fiberglass control horns
  • Aluminum reinforced landing gear mount
  • Aluminum reinforced firewall
  • Aluminum standoffs for gas engines
  • Full-length canister tunnel
  • Canister muffler mounts
  • Heavy duty foam wheels with aluminum hubs
  • Heavy duty steel axles
  • Thick, heavy duty, pre-drilled wheel pants
  • Pre-drilled & rubber lined landing gear cuffs
  • Firewall drilling templates for common engines
  • Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
  • High quality ball links & turnbuckles for all connections
  • Extra hardware bag for spares
  • Velcro for fuel tank or battery restraint
  • All airframe components covered in genuine Ultracote, available in 4 color schemes
    • Retro Scheme (White HANU870, True Red HANU866, Bright Yellow HANU872)
    • Patriot Scheme (White HANU870, True Red HANU866, Bright Yellow HANU872, Midnight Blue HANU885)
    • Valor Scheme (White HANU870, True Red HANU866,Midnight Blue HANU885, Silver HANU881)
    • Reflex Scheme (White HANU870, Cub Yellow HANU884, Midnight Blue HANU885, Silver HANU881)
NOTE: This product is shipped in two separate boxes.
The main box measures 89"L x 18"W x 22"H (49 lbs. total), The wing box measures 47"L x 29"W x 9"H (18 lbs. total).
