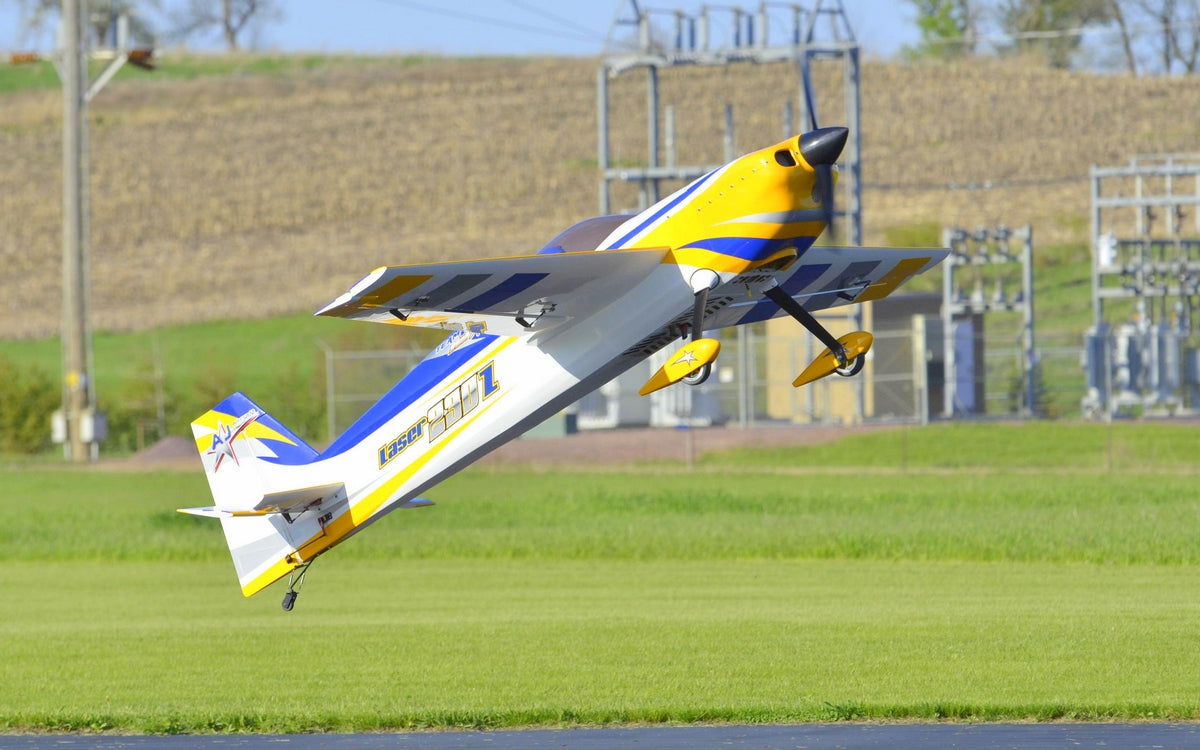

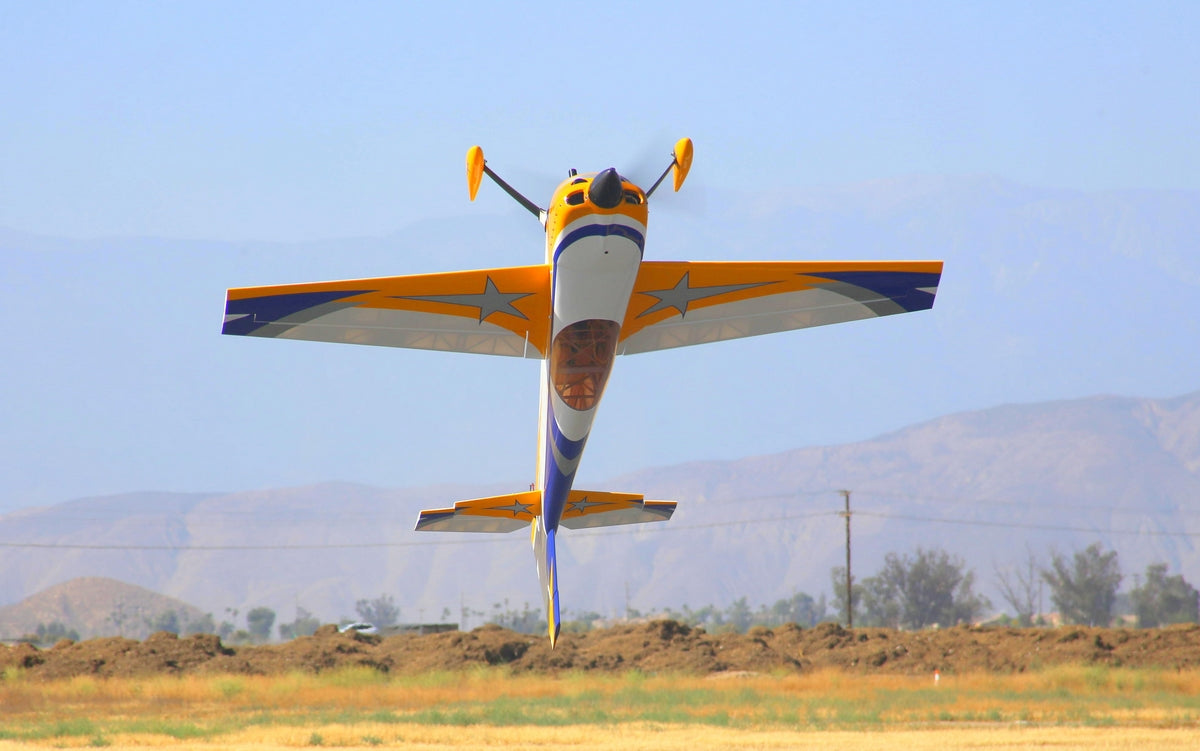

AJ Laser 230Z 123"
The 411:
- Wing Span - 123"
- Length - 114"
- Height -
- Wing Area -
- AUW (dry) - 40-43 lbs.
- Gas Power - 200cc - 222cc
- Radio - 9 channel with 8 high torque servos (400 oz./in minimum) & 1 throttle servo
- IMAC Legal!
Recommended CG Range and Control Throws:
- The center of gravity (CG) range for the 123" Laser 230z is located 3" in front of the wing tube (+/- 1/2")
- Aileron Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Elevator Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Rudder Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - Max Throw (50% Exp)
- Pre-hinged, glued and sealed ailerons & elevators
- High-quality embroidered cloth wing bags & stab bags
- 5.5" carbon fiber spinner pre-cut for two blade prop
- Carbon fiber main landing gear
- Carbon fiber main wing tube
- Dual carbon fiber stab tubes
- Removable horizontal stabs & rudder
- G10 fiberglass control horns
- Aluminum reinforced landing gear mount
- Aluminum reinforced firewall
- Aluminum standoffs for gas engines
- Full-length canister/tuned pipe tunnel
- Canister/tuned pipe muffler mounts
- Heavy duty foam wheels with aluminum hubs
- Heavy duty steel axles
- Heavy duty pre-drilled wheel pants
- Pre-drilled & rubber lined landing gear cuffs
- Firewall drilling templates for common engines
- Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
- High quality ball links & turnbuckles for all connections
- Extra hardware bag for spares
- Velcro for fuel tank or battery restraint
- All airframe components covered in genuine Ultracote, available in 2 color schemes
- Reflex Scheme (Cub Yellow HANU884, Midnight Blue HANU885, Silver HANU881, White HANU870)
- Valor Scheme (True Red HANU866,Midnight Blue HANU885, Silver HANU881, White HANU870)
